Overview

TORNADO-E2 series of DSP controllers for embedded application is a high-performance successor of popular TORNADO-E series providing highest available DSP performance using latest TI TMS320 DSP, enhanced high-speed parallel (PIOX2) and serial (ASIOX) I/O expansion daughter-card module (DCM) interfaces, multi-channel USB 2.0 host/device interface, FLASH memory card slot, system μ-controller (MC) with battery back-up clock and remote power supply control, and many more... The innovative feature of TORNADO-E2 controllers is that they allow to offload the on-board DSP from routine external host communication tasks using TORNADO-HCX  host communication controller DCM with Freescale PowerQUICC PPC-based communication processor for powerful hosting, data post-processing, networking, external communication and mass storage capabilities.

At the same time, and this is the most important point, the main user DSP application code designed for legacy TORNADO-E controllers will remain unchanged for TORNADO-E2 series, thus delivering smooth migration to the new higher-performance DSP platform.

Key features

latest TI TMS320 'C67xx and 'C64xx DSPs
high-density SBSRAM, SDRAM/DDR and FLASH memories
FLASH memory card slot
multi-channel 480 Mbit/s USB 2.0 host/device interface
dual-channel 384 kBaud PC-compatible UART  with RS232C interfaces
SPI and I2C ports
8-bit general purpose I/O (GPIO)
watchdog timer (WDT)
533 Mbyte/s PIOX2 32-bit parallel DCM site interface for high-speed AD/DA/coprocessor expansion (upward compatible with PIOX DCM I/F)
serial SIOX rev.B and enhanced multi-channel audio-SIOX (ASIOX) DCM interface sites for AD/DA expansion
533 Mbyte/s 32-bit parallel host controller (HCX) DCM site interface
system μ-controller (MC) with on-board power supply control, board and external temperature monitoring, on-board and chassis fans control, remote power-supply control, battery back-up real-time clock/calendar (RTCC), programmable multi-event alarm, NvRAM and EEPROM areas, and more...
JTAG port for DSP debugging via MicroLAB Systems MIRAGE-Nxx or TI XDS JTAG emulators
industry-standard 3U form-factor
comprehensive software utilities and ready-to-run demo samples
upward compatible with TORNADO-E controllers

System integration capabilities

stand-alone operation with host PC communication via USB or UART ports

carries one PIOX2  TORNADO Digital Radio Controller, or PIOX2 AD/DA/coprocessor DCM, or one legacy PIOX/PIOX-16 DCM (PIOX2-to-PIOX adapter board is required)

carries one SIOX rev.B or ASIOX AD/DA DCM

carries one TORNADO-HCX host communication controller via HCX DCM site interface for powerful hosting, data post-processing, networking, external communication and mass storage capabilities

Applications

telecommunication
digital radio
networking
audio and multimedia
industrial and medical
instrumentation
education

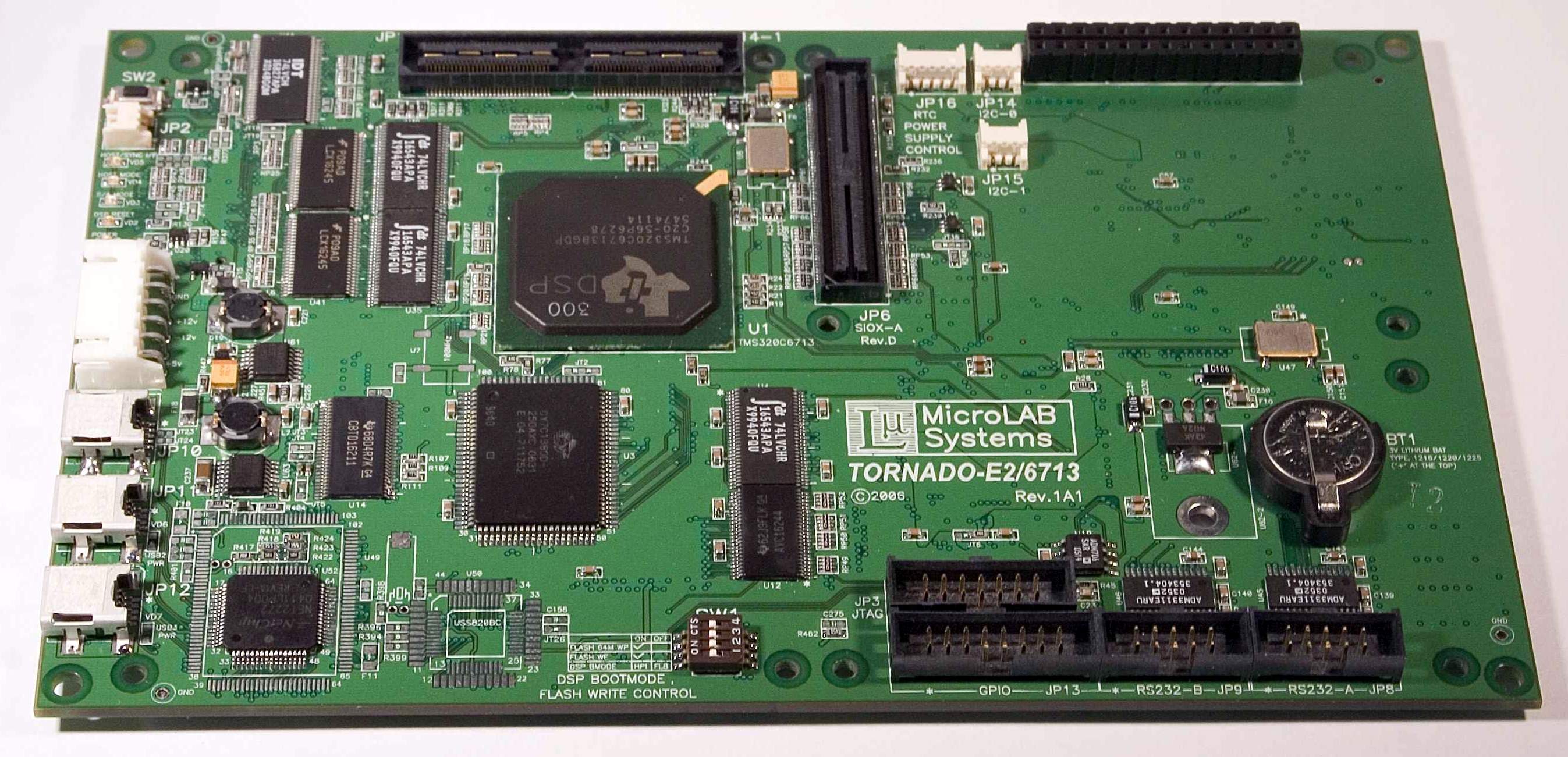

TORNADO-E2/6713 DSP Controller
TORNADO-E2/6713 DSP Controller Board
(click for larger image)

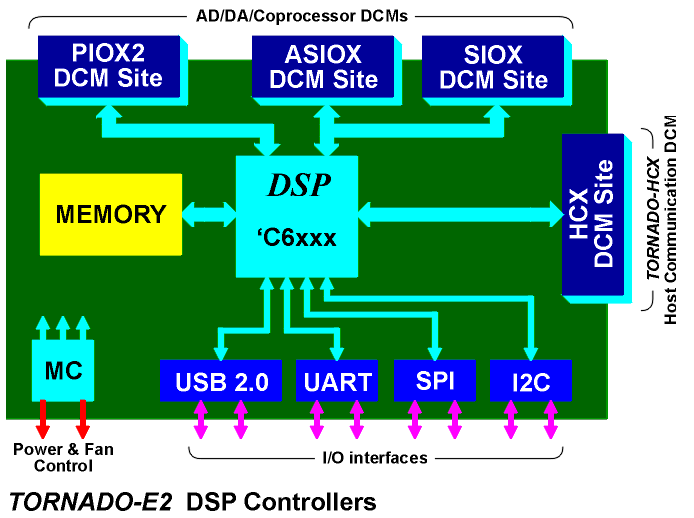

TORNADO-E2 DSP Controllers Block Diagram
TORNADO-E2/xxxx DSP Controllers Block Diagram
(click for larger image)

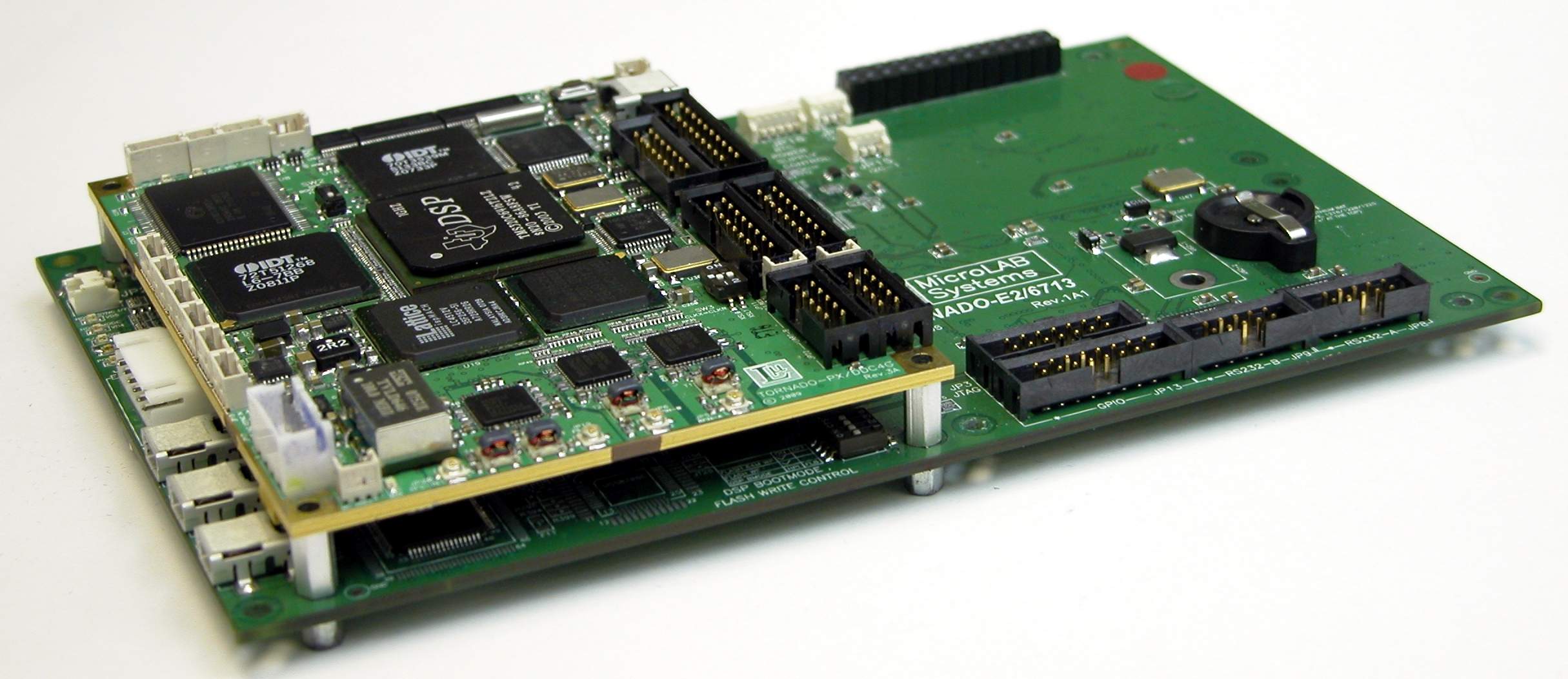

TORNADO-E2/6713 DSP Controller with TORNADO-PX/DDC4G Digital Radio Receiver DCM
TORNADO-E2/6713 DSP Controller with TORNADO-PX/DDC4G rev.3A Digital Radio Receiver DCM
(click for larger image)

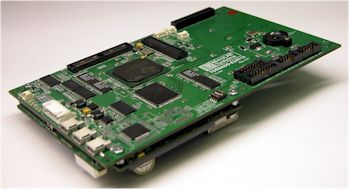

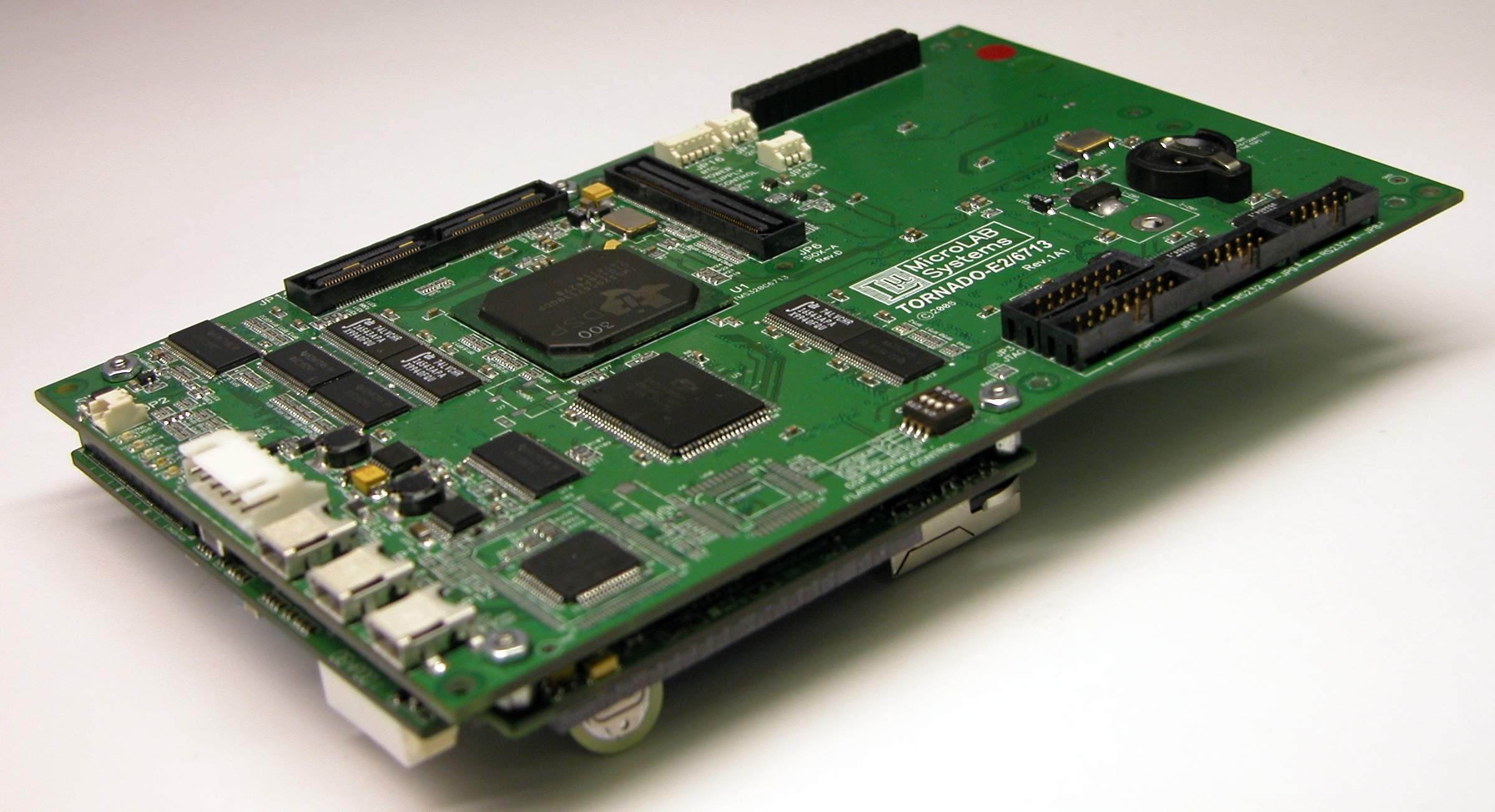

TORNADO-E2/6713 DSP Controller with TORNADO-HCX/8349 Host Communication Controller DCM
TORNADO-E2/6713
DSP Controller with TORNADO-HCX/8349 Host Communication Controller DCM
(click for larger image)

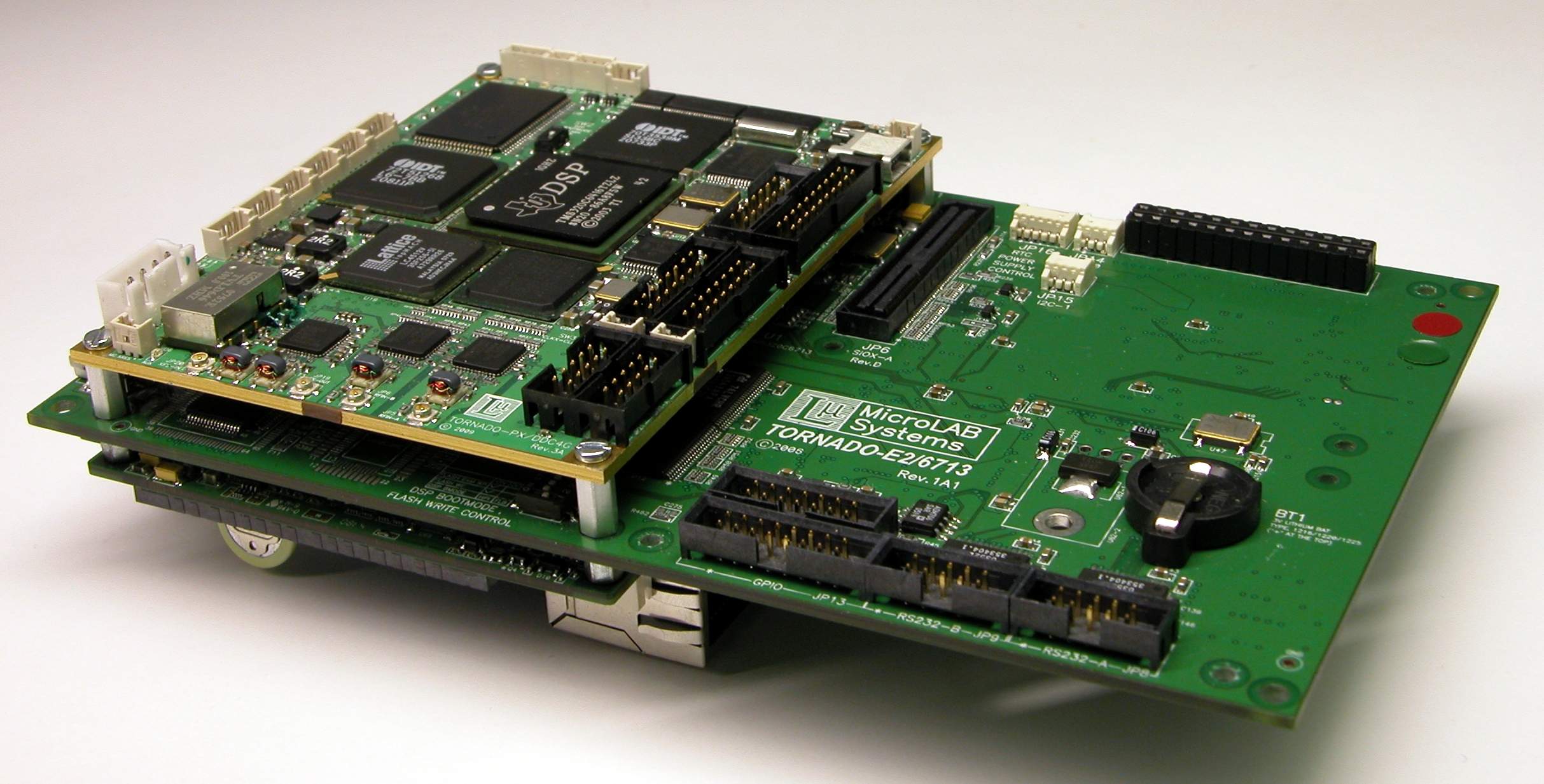

TORNADO-E2/6713 DSP Controller with TORNADO-PX/DDC4G rev3 Digital Radio Receiver Controller DCM and TORNADO-HCX/8349 Host Communication Controller DCM
TORNADO-E2/6713
DSP Controller with TORNADO-PX/DDC4G rev.3A Digital Radio Receiver DCM and TORNADO-HCX/8349 Host Communication Controller DCM
(click for larger image)



TORNADO-E2 DSP Controllers

p/n DSP max
memory
FLASH
card slot
external
I/F
GPIO HCX DCM
site I/F
I/O DCM
site I/F
power & physical Pdf.GIF (224 bytes)
TORNADO-
E2/6713
TI 'C6713
@ 300MHz
(2400MIPS
1800MFLOPS)
512Kx32
SBSRAM

16Mx32
SDRAM

64Mx8
FLASH

SD-card
(SDHC compatible)
2ch. UART
384 kBaud

3-ch. USB 2.0
(host/device)
or
1-ch USB 2.0
(device only)

1x SPI
1xI2C

8 bits 32-bit slave HCX
with
SYNCmaster
(400 Mbyte/s)
32-bit PIOX2
(400 MByte/s)

SIOX  rev.B
or
2-port 8-ch. ASIOX

+5v @ 0.5A

3U
(100x160mm)
