TORNADO-E are stand-alone fixed- and floating-point DSP controllers with modular construction, and are well suited for speech, telecom, networking and industrial embedded applications.

key features:

TORNADO compatible system architecture and modular construction
high-performance 32-bit and 16-bit, fixed- and floating-point TMS320 DSP:
up to 8000 MIPS 32-bit fixed-point TMS320C6414/C6415/C6416 DSP
up to 2400 MIPS 32-bit fixed-point TMS320C6202/C6203 DSP
1000MFLOPS 32-bit floating-point  TMS320C6701 DSP
150 MFLOPS 32-bit fixed-point TMS320VC33 DSP
up to 150 MIPS 16-bit fixed-point TMS320VC5416/VC5402 DSP
high-density RAM (static and dynamic RAMs)
plug-in EPROM/FLASH memory
dual-channel USART with HDLC/X.25, SDLC, BISYNC, MONOSYNC, UART protocols and 10Mbit/s RS422 or 115kBaud RS232C interface
12 Mbit/s USB device interface
8-bit 50 MHz UTOPIA slave interface (TORNADO-E6415/E6416)
on-board general purpose I/O (GPIO)
watchdog timer (WDT)
real-time clock (RTC)  with battery back-up, calendar, programmable alarm, and programmable secondary watch-dog timer (TORNADO-E64xx)
PIOX-16 and SIOX rev.B/C sites for AD/DA/DIO  daughter-card modules and application specific I/O coprocessors
JTAG and MPSD ports for DSP software debugging
industry-standard 3U form-factor
industry-standard DSP software tools

applications:

vocoders/fax/modem
telecommunication
telephony
networking
audio and multimedia
acoustics
industrial and medical
instrumentation
education
TORNADO-E Modular Construction
TORNADO-E Modular Construction
TORNADO-E Modular Construction

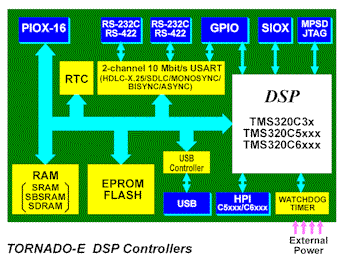

TORNADO-E Architecture

TORNADO-E DSP Controllers

p/n DSP max SRAM max
EPROM
FLASH
communication
I/F
GPIO RTC I/O expansion via DCM Pdf.GIF (224 bytes)
TORNADO-E6414
TORNADO-E6415

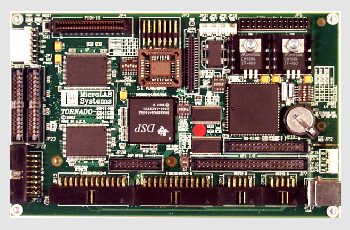

TORNADO-E6416
'C6414/'C6415/'C6416
600MHz@4800MIPS
720MHz@5760MIPS
1GHz@8000MIPS
512Kx64
SBSRAM

16Mx64
SDRAM

1Mx8
(plug-in)
2ch. USART
10Mbit/s
RS422/RS232C

USB

'C64xx
16/32-bit HPI

UTOPIA
(E6415/E6416)

18
bits

SIOX rev.B/C

TORNADO-E6202
TORNADO-E6203
'C6202@2000MIPS
'C6203@2400MIPS
(32-bit fixed-point)
1Mx32
SBSRAM

8Mx32
SDRAM

1Mx8
(plug-in)
2ch. USART
10Mbit/s
RS422/RS232C

USB

'C6202/C6203 HPI

8
bits
- PIOX-16

SIOX rev.B/C

TORNADO-E67
replacement:
TORNADO-E2/6713
'C6701@1000MFLOPS
(32-bit floating-point)
1Mx32
SBSRAM

4Mx32
SDRAM

1Mx8
(plug-in)
2ch. USART
10Mbit/s
RS422/RS232C

USB

'C6701 HPI

8
bits
- PIOX-16

SIOX rev.B/C

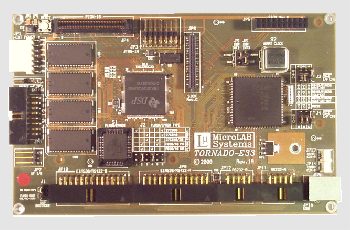

TORNADO-E33 'VC33@150MFLOPS
(32-bit floating-point)
512Kx32 1Mx8
(plug-in)
2ch. USART
10Mbit/s
RS422/RS232C

USB

10
bits
- PIOX-16

SIOX rev.B/C

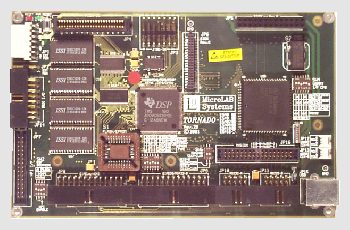

TORNADO-E5416
TORNADO-E5402
VC5416@160MIPS
'VC5402@100MIPS
256Kx16
(P+D)
1Mx8
(plug-in)
2ch. USART
10Mbit/s
RS422/RS232C

USB

'C54x HPI

8
bits
- PIOX-16

SIOX rev.B/C


Utility software and on-line manuals:

TORNADO-E3x Software Utilities and On-line Documentation
TORNADO-E54x Software Utilities and On-line Documentation
TORNADO-E6x Software Utilities and On-line Documentation

Other documentation:

TORNADO-E DSP Controllers Summary Datasheet (Rus) (Eng)
TORNADO Telecom, Audio and Industrial Design Kit (Rus) (Eng)
Software development tools for TORNADO/MIRAGE (Rus)
Application software tools for TORNADO (Rus)
