TORNADO-6x are ultra high-performance fixed- and floating-point DSP systems and universal emulators for TI TMS320 DSP for ISA-bus PC and standalone applications.

key features:

compatible ultra-high performance DSPs:
1000MFLOPS 32-bit floating-point  TMS320C67xx DSP
TORNADO compatible system architecture and modular construction
up to 1Mx32  SBSRAM
up to 1Mx8  of plug-in EPROM/FLASH for stand-alone operation
Shared Bus (SB) architecture
PIOX/PIOX-16 and SIOX sites for AD/DA/DIO daughter-card modules and application specific I/O coprocessors
direct access from host ISA-bus I/F to SBSRAM, PIOX/PIOX-16 and DSP on-chip HPI port
DSP boots from None/FLASH/HPI
multiprocessor DSP expansion
watch-dog timer
stand-alone operation
UECMX on-board JTAG plug-in emulator option running under TI Code Composer Debugger tools
converts to the emulator for any external TMS320 DSP via optional external JTAG or MPSD pod
build-in device serial codes
compact size
supported by TORNADO Software Development Kit (TSDK) and industry-standard DSP software tools

applications:

multichannel vocoders and speech processing
pooled fax/modems
xDSL modems
multichannel telephony
multichannel audio
image processing and tomography
acoustics and radar
industrial and instrumentation
education and evaluation
universal emulators for TMS320 DSP

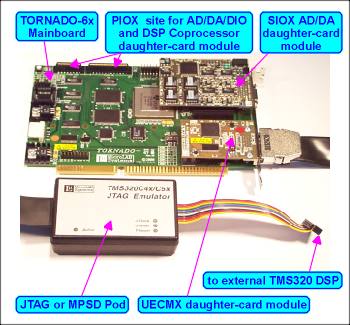

TORNADO-6x Modular Construction

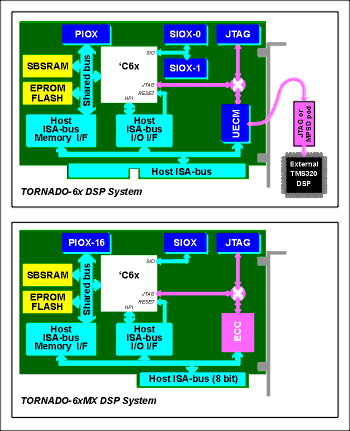

TORNADO-6x DSP Systems Architecture

TORNADO-6x DSP Systems Summary

p/n DSP max SBRAM max
EPROM/
FLASH
I/O Expansion Emulation options Host PC bus Stand-
alone
operation
TORNADO-67 'C6701
1000MFLOPS
1Mx32 1Mx8
(plug-in)
PIOX

SIOX(2)
UECMX
+ pod
ISA WB01372_1.gif (406 bytes) pdfsmall.gif (153 bytes)

Utility software and on-line manuals:

TORNADO-6x Software Utilities and On-line Documentation
TORNADO Software Development Kit (TSDK) for host Windows Applications

Other documentation:

TORNADO PC plug-in DSP Systems Summary Datasheet (Rus) (Eng)
Software Development tools for TORNADO/MIRAGE (Rus)
Application software tools for TORNADO (Rus)
