  TORNADO-A6678/FMC
AMC-module/Controller with TI TMS320C6678 DSP, Xilinx Virtex-7 FPGA and FMC-site

Home

Products

Price

Publications

Support

About

Contacts

Contents





Texas InstrumentsFreescale Power PC Processors
PICMG Open Modular Computing Standards
PICMG Advance Mezzanine Card (AMC) Specification
PICMG MicroTCA Specification





Key features

  • Industry first unique ultra-high performance single-width AMC-module with multi-core DSP, high-capacity FPGA and FMC-site for modular MicroTCA and AdvancedTCA systems and stand-alone embedded applications
  • Installs into MicroTCA chassis and AdvancedTCA mainboards
  • FMC site for user application adopted I/O (AD/DA, SFP+, QSFP+, SDR, RF, etc.) using FMC submodule
  • In-chassis AMC-to-AMC high-speed real-time data transfer via AMC interface using 10GBE/40GbE, Serial RapidIO and PCIe protocols
  • High-speed multi-channel DSP-to-FPGA communication
  • Remote control from host PC and Android devices and in-chassis AMC-to-AMC communication via AMC 1GbE ports
  • Unified TASDK tools for application development and system control
  • Complies with PICMG 3.0 Rev.3.0, MicroTCA.0 R1.0, AMC.0 R2.0, IPMI 1.5, VITA 57.1-2008 specifications
  • Stand-alone operation from +12V power supply for user embedded applications

Details

  • 8-core Texas Instruments TMS320C6678 DSP (1.25GHz 320GMAC/160GFLOPS)
  • Xilinx Virtex-7 FPGA (XC7VX330T, XC7VX415T, XC7VX690T)
  • VITA 57.1 FMC HPC site for FMC submodule (160 I/O, 8 GBTs)
  • AMC Fabric-D/E/F/G ports 4-7 and 8-11 with FPGA transceivers comply AMC.2 10GbE/40GbE, AMC.4  4x Serial RapidIO (39.4Gbps) and AMC.1 4x PCIe (32Gbps) protocols
  • AMC Fabric-A ports 0-1 (AMC.2 1GbE) from DSP for AMC remote control and in-chassis AMC-to-AMC communication
  • DSP-to-FPGA communication via 4x 5Gbps Serial RapidIO ports (40Gbps bidirectional bandwidth), DSP EMIF-16 interface and DSP GPIO/IRQ
  • Up to 8GB of on-board DSP DDR3 memory
  • 1Gb NOR FLASH for DSP bootloader, system monitor, applications, data arrays and FPGA bitstreams with file system support
  • Nonvolatile high-speed 128KB MRAM memory for critical user DSP application data
  • "Hardware" and "software" write protection for FLASH and MRAM memory contents for reliable user DSP application functionality
  • x64 (up to 8GB) and x32 (up to 4GB) FPGA DDR3 banks
  • DSP and MMC UART ports for remote control and management
  • Front-panel DSP and FPGA user application controlled LEDs
  • JTAG ports for DSP, FPGA and FMC site
  • MMC controller based on MicroLAB Systems proprierity TAMMC high-speed MMC-kernel with monitoring of power supplies and temperatures and status indication for reliable device operation and protection
  • Available in Mid-size (M/S) and Full-size (F/S) single-width AMC-module form-factors

Development Tools

  • TI Code Composer Studio tools and MicroLAB Systems MIRAGE-NE1/NC2 JTAG emulators to compile and debug user DSP applications
  • Xilinx ISE/Vivado tools and IP to compile and debug user FPGA firmware
  • Unified TASDK tools with high-level API, bootloader and system monitor to quickly design cross-platform user DSP applications and host Windows/Linux/Android applications for all MicroLAB Systems TORNADO-Axxx AMC-modules
  • DSP and FPGA demo projects for device tests and user design startup

Applications

  • Telecommunication and cell telephony
  • RF and digital radio
  • Image processing
  • Radars and astrophysics
  • Industrial, telemetry, instrumentation and medical
  • General stand-alone and distributed DSP applications

** Notes

MicroLAB Systems can modify this product to meet special customer requirements. MOQ may apply. Contact MicroLAB Systems for more details.

  TORNADO-A6678/FMC mid-size AMC-module (click to enlarge)
TORNADO-A6678/FMC AMC-module (M/S)
(click to enlarge)

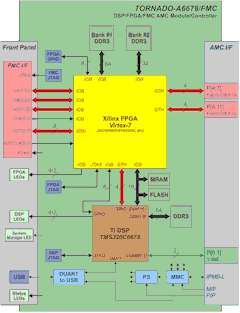

TORNADO-A6678/FMC Block Diagram (click to enlarge)
TORNADO-A6678/FMC Block Diagram
(click to enlarge)

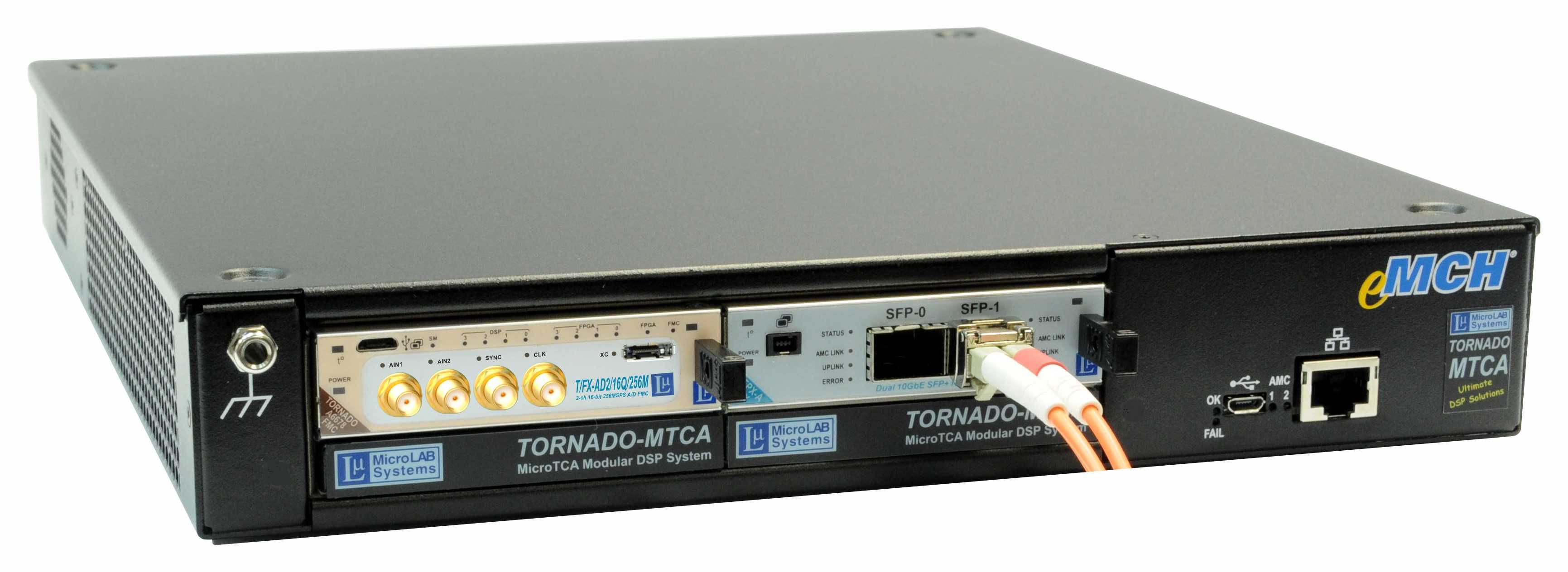

Modular mini TORNADO-RxmMTCA DSP system with TORNADO-A6678/FMC AMC-module, FMC A/D mezzanine module,  and  T/AX-DSFPX network AMC-modules in 2-slot MicroTCA mini-chassis with passive backplane
Modular mini TORNADO-RxmMTCA DSP system with TORNADO-A6678/FMC AMC-module, FMC A/D mezzanine module,  and  T/AX-DSFPX network AMC-modules in 2-slot MicroTCA mini-chassis with passive backplane
(click to enlarge)

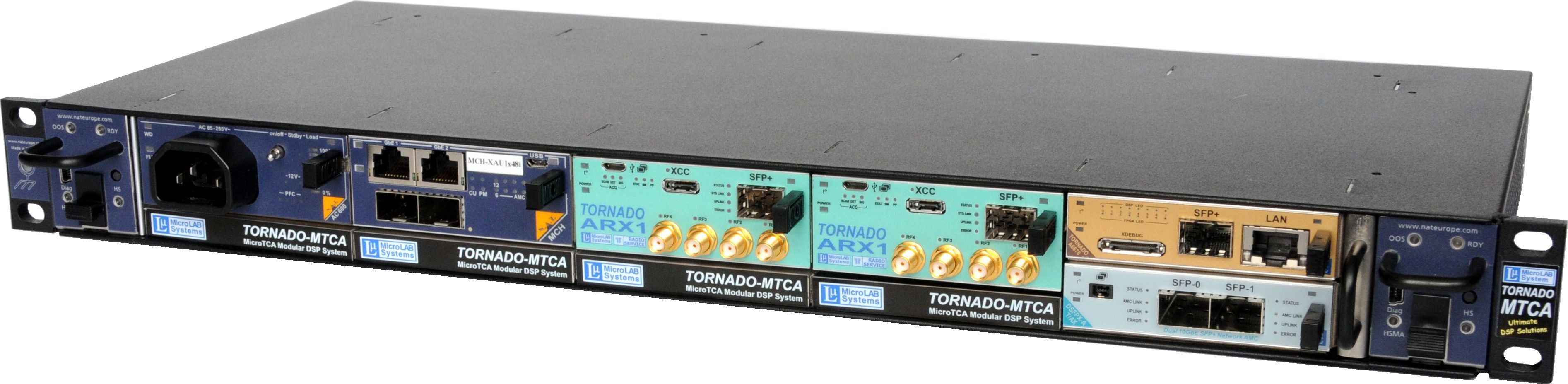

Modular TORNADO-RxMTCA radio-monitoring system with high-performance DSP comprising two F/S TORNADO-ARX1 radio-processing AMC-modules, M/S TORNADO-A6678 AMC-module and T/AX-DSFPX network AMC-module in 19" 1U 6-slot MicroTCA chassis with 10GbE backplane switch
Modular TORNADO-RxMTCA radio-monitoring system
with high-performance DSP comprising two F/S TORNADO-ARX1 radio-processing AMC-modules, M/S TORNADO-A6678 AMC-module and T/AX-DSFPX network AMC-module in 19" 1U 6-slot MicroTCA chassis with 10GbE backplane switch
(click to enlarge)



Technical Specifications (TORNADO-A6678/FMC rev.1B)

DSP

  • Texas Instruments TMS320C6678 Fixed/Floating-point DSP, 8-cores, 1.25GHz (320GMAC/160GFLOPS).
  • 128M/256M/512M/1Gx64 (1GB/2GB/4GB/8GB) 1333MTPS on-board DDR3 memory (is specified on ordering).
  • On-board 64Mx16 (1Gb) NOR FLASH with hardware/software write protection, non-volatile 128Kx8 MRAM memory with software write protection (optional, is specified on ordering), and 64Kx8 (512Kb) I2C SEEPROM (optional, is specified on ordering).
  • 4x 5Gbps Serial Rapid ports (connected to FPGA transceivers).
  • 2x 1GbE SGMII ports (connected to AMC I/F ports 0 and 1).
  • 115kBaud UART port (available via USB port at front panel).
  • EMIF-16 16D/24A I/F (used to access FLASH, MRAM, user FPGA on-chip logic, etc).
  • DSP Bootmodes: None/Debug, EMIF/FLASH, Ethernet.
  • Debug port: JTAG (14-pin, LVTTL 3V) via adapter cable.

FPGA

  • Xilinx Virtex-7: XC7VX330T-[2/3]FFG1157[C/E/I], XC7VX415T-[2/3]FFG1157[C/E/I], XC7VX690T-[2/3]FFG1157[C/E/I].
    Options to specify on ordering: FPGA type, speed grade ([-2/-3]), temperature index ([C/E/I]).
    Default FPGA is XC7VX415T-2FFG1157C.
  • Two on-board FPGA DDR3 memory banks (optional, is specified on ordering):
    • Bank #1: 128M/256M/512M/1Gx64 (1GB/2GB/4GB/8GB)
    • Bank #1: 128M/256M/512M/1Gx32 (512MB/1GB/2GB/4GB)
  • FPGA bitstream loading modes: from DSP applications, via JTAG.
  • FPGA bitstream decryption key battery (optional, is specified on ordering). User replaceable every 5 years.
  • Debug port: JTAG (14-pin, LVTTL 3V) via adapter cable.

FMC site interface

  • Complies VITA 57.1-2008 specification.
  • FMC mezzanine submodule width: single.
  • FMC mezzanine submodule stacking: 10mm (default), 8.5mm (optional).
  • FMC interface type: HPC, LPC.
  • Number of I/O: 160 (LA[0:33], HA[0:23], HB[0:21]).
  • Number of I/O clocks: 4 (CLK_M2C[0:3]).
  • I/O logic levels (Vadj) for LA/HA/HB I/O pins and CLK_M2C clocks: 1.2V, 1.5V, 1.8V (set automatically on FMC site initialization).
  • Number of GBT transceivers: 8 (GBT[0:7]).
  • GBT performance: 10.3Gbps (for FPGA with [-2] speed grade), 12.5Gbps (for FPGA with [-3] speed grade).
  • Maximum FMC mezzanine submodule power consumption: 1A@+12V, 3A@+3.3V, 4A@Vadj, 50mA@+3.3V_AUX.
  • Maximum FPGA FMC interface power consumption for FMC submodule provided power : 0.3A@VIO_B_M2C, 0.5mA@VREF_A_M2C, 0.5mA@VREF_B_M2C.
  • Debug port: JTAG (10-pin, LVTTL 3V) via adapter cable.

Front panel

  • A "window" for front bezel of FMC mezzanine submodule.
  • User DSP application controlled LEDs: 4 (bi-color: Red/Green, Orange/Green, Green/Yellow, Red/Yellow).
  • User FPGA firmware controlled LEDs: 4 (bi-color and tri-color: Red/Green, Orange/Green, Green/Yellow, Yellow/Green/Blue).
  • AMC status LEDs: BLUE LED, AMC LED1 ("Power" function, Red/Green), AMC LED2 ("tº" function, Yellow/Green).
  • DSP Bootloader & System Manager Status LED (Yellow/Green/Blue).
  • FPGA configuration  status LED (Red/Green).
  • FMC site status LED (Red/Green/Blue).
  • Micro-USB port with MMC UART (115kBaud) and DSP UART (115kBaud).

AMC I/F

  • Complies PICMG AMC.0 R2.0, MicroTCA.0 R1.0 specifications.
  • FPGA ports: AMC Fabric-D/E/F/G ports 4-7 and 8-11 (AMC.2 Ethernet, AMC.4 Serial Rapid IO, AMC.1 PCIe)
  • DSP ports: AMC-Fabric-A ports 0, 1 (AMC.2 1GbE).
  • MMC ports: IPMB-L port.
  • Power: +12V P/P, +3.3V M/P.

MMC module management controller)

  • Firmware based on high-performance TAMMC MMC-kernel from MicroLAB Systems.
  • Complies IPMI 1.5, IPMB CPS v1.0, PICMG 3.0 rev.3.0, MicroTCA.0 R1.0, AMC.0 R2.0 and VITA 57.1-2008 specifications.
  • High-speed monitoring of payload power and all backend power supplies (voltage and current), tolerance control.
  • Multi-point temperature monitoring of PCB, DSP and FPGA.
  • Activation and status monitoring for FMC submodule.
  • Power and temperature status indication of AMC module and FMC sub-module via bi-color front-panel AMC LEDs and on-board LEDs.
  • Remote MMC console via MMC UART 115kbaud port.

Physical

  • Dimensions (is specified on ordering):
    • Single width Mid-size (M/S) AMC-module (181 74 19 mm) (default).
    • Single width Full-size (F/S) AMC-module (181 74 29 mm) (optional).
  • Weight 0.35 kg.

Power and temperature

  • AMC +12V P/P payload power or external +12V power for stand-alone embedded applications:
    • without FMC mezzanine module installed: +12V @ 2.5A (typ) (30W), 4A (max) (48W).
    • with max power FMC mezzanine module installed: +12V @ 3.4A (typ) (41W), 4.9A (max) (59W).
  • AMC M/P management power: +3.3V @50mA (typ).
  • Operating temperature (ambient) with forced cooling 50CFM: 0ºC+65ºC.
  • Storage temperature (ambient): -40ºC+80ºC.



Ordering information

  TA6678FMC1B/X415T2C/1.25G/D2/F1/E512/M128/F1D2/F2D1/FC/FB/SA/MS
    TORNADO-A6678/FMC rev.1B AMC-module, Xilinx Virtex-7 XC7VX415T-2FFG1157C FPGA (X415T2C), 1.25GHz DSP clock frequency (D1.25), 2GB (256Mx64) DSP DDR3 memory (D2), 1Gb (64Mx16) DSP FLASH memory (F1), 128KB nonvolatile DSP MRAM memory (M128), 512Kb (64Kx8) DSP SEEPROM memory (E512), 2GB (256Mx64) FPGA DDR3 memory bank #1 (F1D2), 1GB (256Mx32) FPGA DDR3 memory bank #2 (F2D1), FMC/HPC connector installed (FC), FPGA bitstream decryption key battery (FB), stand-alone mode support (SA), single-width mid-size (M/S) AMC-module dimension (MS), standard 10mm FMC mezzanine module stacking.

  TA6678FMC1B/X690T3E/1.25G/D4/F1/E512/M128/F1D4/F2D2/FC/FB/SA/MS
    TORNADO-A6678/FMC rev.1B AMC-module, Xilinx Virtex-7 XC7VX690T-3FFG1157E FPGA (X690T3E), 1.25GHz DSP clock frequency (D1.25), 4GB (512Mx64) DSP DDR3 memory (D4), 1Gb (64Mx16) DSP FLASH memory (F1), 128KB nonvolatile DSP MRAM memory (M128), 512Kb (64Kx8) DSP SEEPROM memory (E512), 4GB (512Mx64) FPGA DDR3 memory bank #1 (F1D4), 2GB (512Mx32) FPGA DDR3 memory bank #2 (F2D2), FMC/HPC connector installed (FC), FPGA bitstream decryption key battery (FB), stand-alone mode support (SA), single-width mid-size (M/S) AMC-module dimension (MS), standard 10mm FMC mezzanine module stacking.




Datasheets and Application Materials

  TORNADO-A6678/FMC rev.1B AMC-module datasheet
  Presentation "Specifics and Outlook of PICMG MicroTCA Standard for DSP Applications" (Rus)
  Presentation "TORNADO-MTCA DSP Systems" (Rus)
  Presentation "Software Architecture for TORNADO-MTCA DSP Systems" (Rus)
  Paper in Russian 'Components and Technologies' magazine (Jan-2015): "TORNADO-A6678 AMC-module Applications in MicroTCA DSP Systems" (Rus)
  Paper in Russian 'Telecommunications' magazine (Jan-2015): "TORNADO-A6678 AMC-module Applications in MicroTCA DSP Systems" (Rus)
  Application note AN-TARxMTCA-1A (2016-01) (Rus):
O.A.Vasiliev, P.A.Semyonov: "Distributed Multichannel Radiomonitoring Systems TORNADO-RxMTCA
"
  Paper in 'Information Security - Inside' magazine (Jan-2016): "Rubic's Radiocube: Building a Multichannel Radio Monitoring System"
