TORNADO-P6x are ultra high-performance fixed- and floating-point DSP systems for PCI-bus and standalone applications. TORNADO-P6x architecture has been optimized for high-performance on-board DSP and in-parallel host PCI-to-DSP communication.

key features:

compatible ultra-high performance DSPs:
up to 8000 MIPS (1 GHz) 32-bit fixed-point  TMS320C64xx DSP
up to 2400 MIPS (300 MHz) 32-bit fixed-point  TMS320C62xx DSP
up to 1000 MFLOPS (167 MHz) 32-bit floating-point  TMS320C67xx DSP
TORNADO compatible modular construction with daughter-card modules
all boards feature h/w and s/w compatible host PCI I/F and DSP environment
up to 4 Mbyte of SBSRAM
up to 128 Mbyte of SDRAM
up to 2 Mbyte of dual-port RAM (DPRAM)
up to 1Mx8 plug-in FLASH/EPROM (TORNADO-P62xx/P67) and up to 64 Mbyte of embedded FLASH (TORNADO-P64xx) for stand-alone operation
high-performance PCI-bus host I/F with multi-channel PCI-to-DSP communication:
high-density DPRAM for random data access between PCI and DSP
sequential access from PCI to all DSP memory areas via 'C6x HPI port
PCI-bus mastering from DSP via bi-directional FIFO
multi-channel MAILBOXES
multi-channel interrupts
multi-source DSP external interrupts
DSP boot from None/FLASH/HPI
PIOX/PIOX-16 and SIOX rev.B/C sites for AD/DA/DIO daughter-card modules and applications specific I/O coprocessors
multiprocessor DSP expansion
watch-dog timer
8-bit 50 MHz UTOPIA slave interface (TORNADO-P6415/P6416)
stand-alone operation
on-board ECC emulator running under TI Code Composer Debugger tools
build-in device serial codes
half-size PCI board
supported by TORNADO Software Development Kit (TSDK) and industry-standard DSP software tools

applications:

DSP accelerators for PC with extensive PCI-to-DSP communication
multichannel vocoders and speech processing
pooled fax/modems
xDSL modems
multichannel telephony
multichannel audio
image processing and tomography
acoustics and radar
industrial and instrumentation
education and evaluation

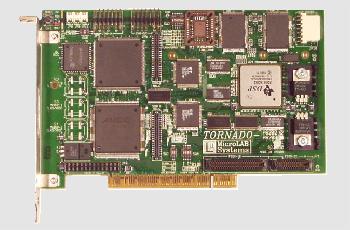

TORNADO-P6x Ultra-high Performance DSP System for PCI

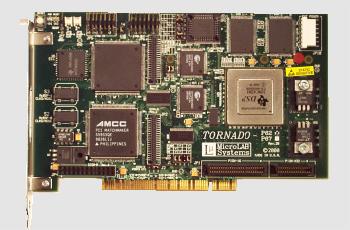

TORNADO-P6x Ultra-high Performance DSP System for PCI

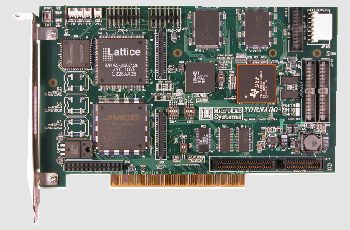

TORNADO-P6x Ultra-high Performance DSP System for PCI

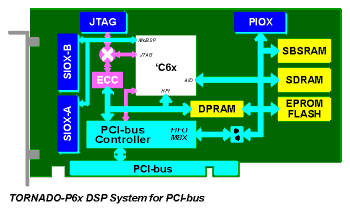

Architecture of TORNADO-P6x DSP Systems for PCI-bus

TORNADO-P6x DSP Systems Summary

p/n DSP max
SBRAM
max
SDRAM
max
EPROM/
FLASH
max
dual-port
RAM
(DPRAM)
I/O
Expansion
embedded
JTAG
emulator
PCI-bus
mastering
stand-
alone
operation
TORNADO-P6414
TORNADO-P6415
TORNADO-P6416
'C6414/'C6415/'C6416
600MHz@4800MIPS
720MHz@5760MIPS
1GHz@8000MIPS
512Kx64 16Mx64 64Mx8
(embedded)
512Kx32 PIOX

SIOX rev.B/C(2)
ECC WB01372_1.gif (406 bytes) WB01372_1.gif (406 bytes) pdfsmall.gif (153 bytes)
TORNADO-P6202
TORNADO-P6203
'C6202@2000MIPS
'C6203@2400MIPS
1Mx32 8Mx32 1Mx8
(plug-in)
64Kx32 PIOX

SIOX rev.B/C(2)
ECC WB01372_1.gif (406 bytes) WB01372_1.gif (406 bytes) pdfsmall.gif (153 bytes)
TORNADO-P67 'C6701@1000MFLOPS 1Mx32 4Mx32 1Mx8
(plug-in)
64Kx32 PIOX

SIOX rev.B/C(2)
ECC WB01372_1.gif (406 bytes) WB01372_1.gif (406 bytes) pdfsmall.gif (153 bytes)

Utility software and on-line manuals:

TORNADO-P6x Software Utilities and On-line Documentation
TORNADO Software Development Kit (TSDK) for host Windows Applications

Other documentation:

TORNADO PC plug-in DSP Systems Summary Datasheet (Rus) (Eng)
Software development tools for TORNADO/MIRAGE (Rus)
Application software tools for TORNADO (Rus)
